Maine Power Substation Additions

Five new substations support growing load and addition of wind farms

Maine Power Substation Additions
Augusta, Maine
Client: Central Maine Power

Print This Page

Project Highlights:

  • Transmission line engineering and design
  • Technical specifications for material and equipment
  • Testing and commissioning

Project Description:

Sargent & Lundy is teaming with Cianbro Corp. (Pittsfield, ME) to design and build five new substations for Central Maine Power. Sargent & Lundy is a subcontractor to Cianbro for the engineering and pre-testing of the following substations:

  • Albion
  • Monmouth
  • Raven Farm
  • Larrabee Road
  • Coopers Mills Road

Three of the substations are 345/115/13.8-kV, one is a 345-kV switchyard and one is a 115/34/12-kV substation.

Project Scope:

Sargent & Lundy’s scope of work for the five substations includes complete engineering of the electrical, civil, and structural portions of the substations. Site development for the substations was engineered by the owner and awarded as a separate construction contract. Sargent & Lundy is also specifying all of the equipment and providing procurement support to Cianbro for the substations.

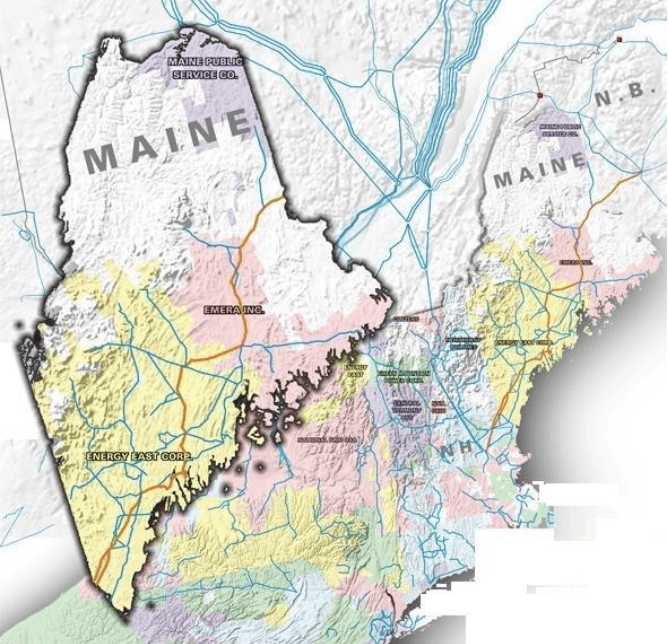

Four of the substations will connect into the Maine power grid through a new 345-kV transmission backbone that will carry power from east central Maine down to southeastern New Hampshire. The existing transmission system, built in the early 1970s, will be upgraded to support current and future loads in Maine as well as the addition of wind generation in the region.

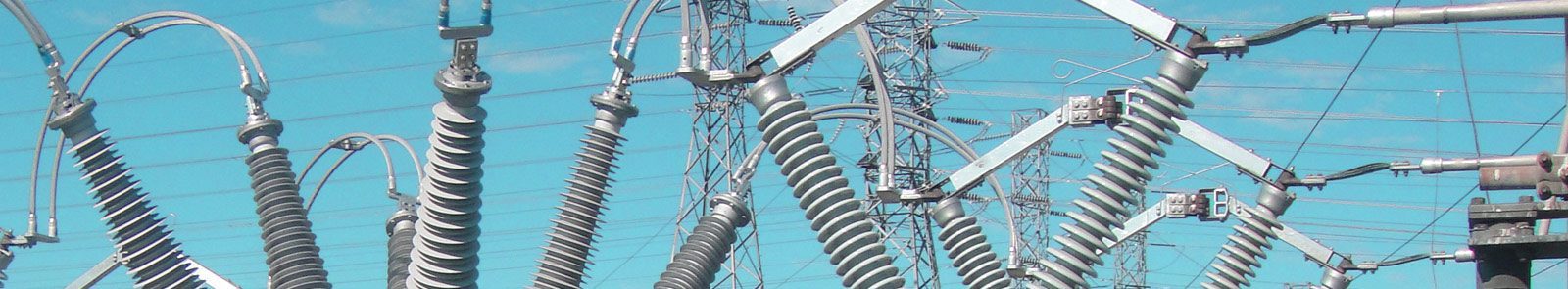

These greenfield, open-air substations include autotransformers, breakers, capacitor banks, inductors, and new control buildings. S&L wrote the technical specifications and coordinated the procurement for all of the engineered equipment with the exception of the owner provided transformers and circuit breakers. S&L coordinated the new equipment testing at each substation, as well as writing of commissioning plans. The engineering was completed in early 2013. The five substations have staggered in-service dates with the first starting in 2011 and the final substation in service in summer 2015.

Cianbro is an employee owned company and a leading health and safety innovator providing construction and service solutions to clients throughout North America. With the ability to self-perform all aspects of heavy industrial and civil construction projects, including power generation and transmission facilities for public utilities, private manufacturers and independent power producers.

Central Maine Power, an Iberdrola USA company, serves more than 600,000 customers in an 11,000 square mile service territory in southern Maine.
