345-138 kV Substation Upgrade Project

Engineering solutions to the many challenges involved in a complex transition from old to new facilities


Abstract

A primary goal of electric utilities is to maintain reliable and stable service.  Therefore utilities forecast and evaluate future power system scenarios and implement the necessary improvements to mitigate adverse impacts.  The reliability and age of the existing substation in their northeastern service territory prompted Commonwealth Edison Company (ComEd) to initiate a major substation project.  To support reliability and reinforcement improvements to their 138-kV system, a plan was developed to provide an additional source of power into the 138-kV system from the 345-kV system.  This involved bisecting an existing 345-kV transmission line and constructing a new 345-kV to 138-kV substation.

This paper summarizes engineering solutions to the many challenges involved in a complex transition from old to new facilities.  The project was completed with no adverse events and met the stated project objectives.

Index Terms—Power industry, Electricity supply industry, Substations, Construction

Authors:
Ed Crockett, Jim Kerkhoven – Sargent & Lundy
Doug Eakins, Brian Smith, Carl Formento – Commonwealth Edison Company

View or download the poster. Download the full paper below.

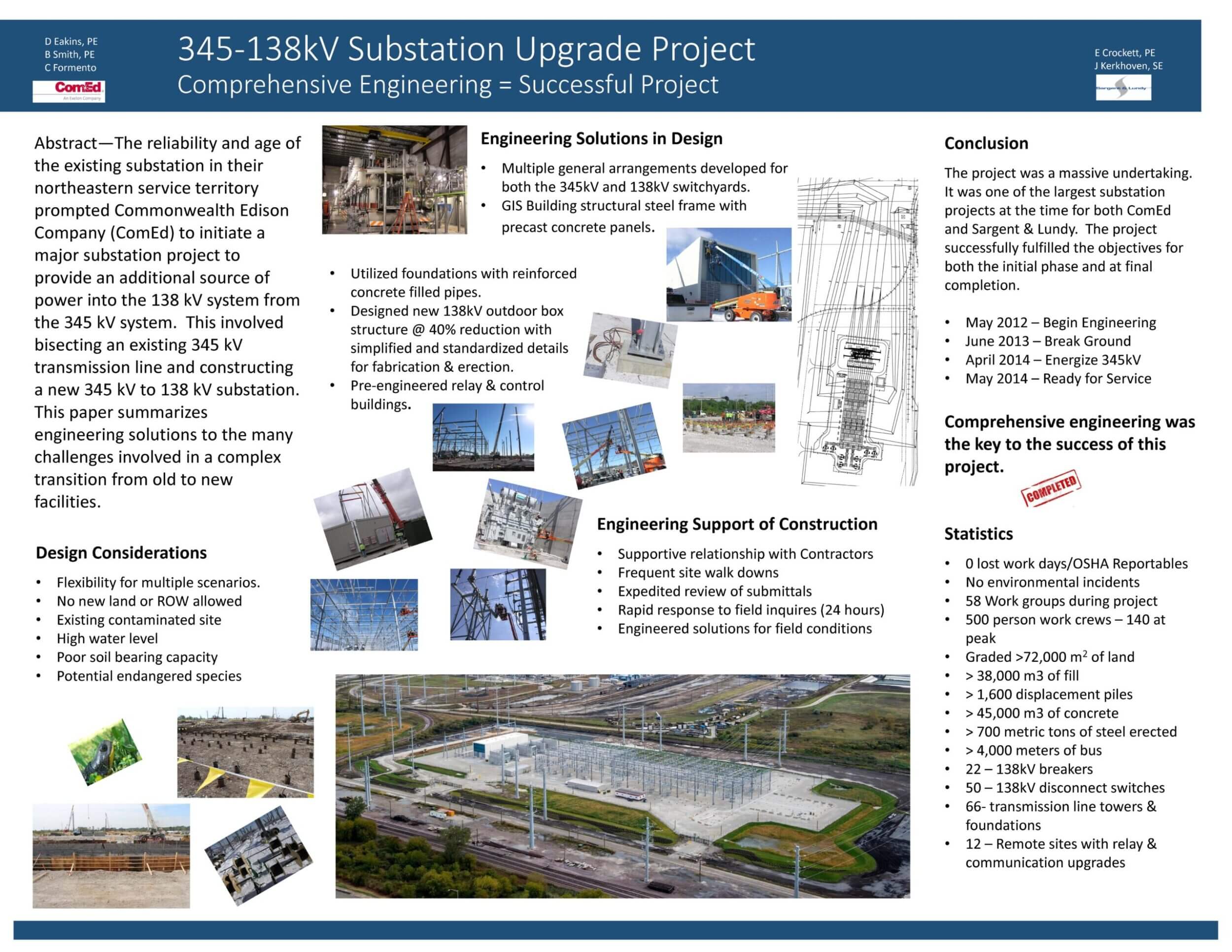

345-138-kV-Substation-Upgrade-Project-Poster-PES2016
